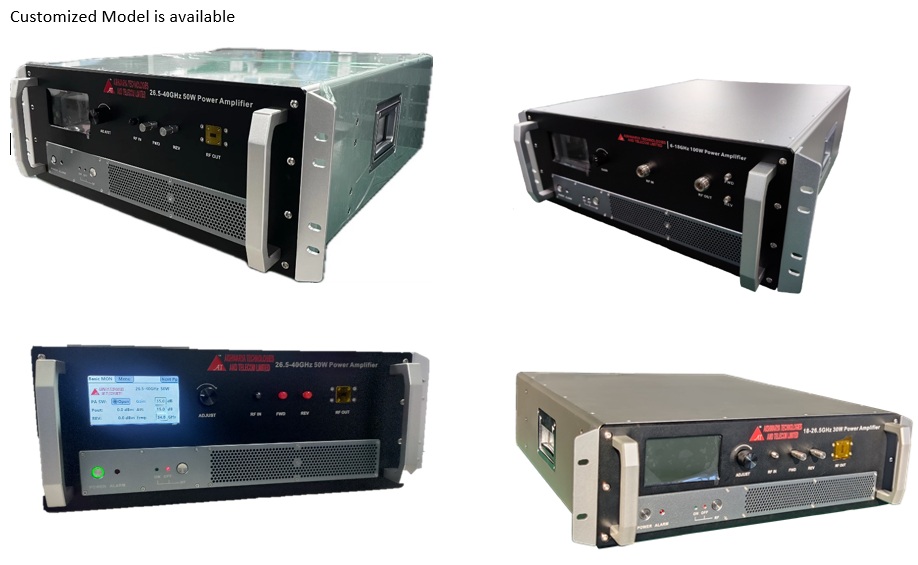

RACK MOUNT SOLID STATE POWER AMPLIFIER
RACK
MOUNT SOLID STATE POWER AMPLIFIER
Telogica Ltd's exceptional growth
record and our extensive capabilities. Over our 28-year history, we have
maintained a positive growth rate, reflecting our commitment to excellence and innovation.
We have become a trusted and regular supplier to numerous DRDO and ISRO labs,
delivering a wide range of customized testers and subsystems tailored to meet
our customers' specific requirements.
In 2021, we entered a strategic
joint venture with a US-based RF amplifier manufacturer. This partnership has
significantly expanded our product portfolio, enabling us to offer
state-of-the-art RF amplifiers that cover frequencies from 9 kHz to 110 GHz.
Our amplifiers deliver impressive power output, ranging up to 10,000W for
continuous wave (CW) and up to 80,000W for pulsed signals. This collaboration
underscores our dedication to providing high-quality, cutting-edge solutions
that meet the evolving needs of our clients. We are proud of our achievements
and look forward to continuing our tradition of excellence and innovation.
·
State-of-the-art
GaN technology
·
Have
independent intellectual property rights, independent and controllable
technology
·
Ultra
broadband (2GHz-18GHz, 18GHz-26.5GHz, 26.5GHz-40GHz, 18GHz-40GHz, 40-67GHz,
36-50GHz,50-75GHz,60-90GHz,75-81GHz,81-86GHz,91-97GHz,75-110GHz……?.
·
High
continuous power output
·
High
linearity for wideband communications testing(ACPR exceeds -30dBc for many
products).
·
Good
IMD3 performance
·
Modular
design for faster installation, disassembly, and maintenance
·
Fast
integrated protection circuitry (response time ~20 µs.)
·
Burn-in
and military-grade aging tested for at least 72 hours.
|
MODEL |
Frequency (GHz) |
Output Power Min(W) |
Gain Min(dB) |
Gain Adj. (dB) |
2nd Harmonic Power @ Psat (dBc) |
Gain Flatness |
|
|
TL9K250M - 1000 |
9KHz-250MHz |
1000 |
60 |
20 |
-15 |
±3 |
|
|
TL9K250M - 1500 |
9KHz-250MHz |
1500 |
62 |
20 |
-15 |
±3 |
|
|
TL9K250M - 3000 |
9KHz-250MHz |
3000 |
65 |
20 |
-15 |
±3 |
|
|
TL 00801 - 100 |
0.08 - 1 |
100 |
50 |
20 |
-10 |
±3 |
|
|
TL 00801 - 200 |
0.08 - 1 |
200 |
53 |
20 |
-10 |
±3 |
|
|
TL 00801 - 400 |
0.08 - 1 |
400 |
56 |
20 |
-10 |
±3 |
|
|
TL 00801 - 500 |
0.08 - 1 |
500 |
57 |
20 |
-10 |
±3 |
|
|
TL 00801 - 600 |
0.08 - 1 |
600 |
58 |
20 |
-10 |
±3 |
|
|
TL 00801 - 1000 |
0.08 - 1 |
| |||||
